5BBL-60BBL 发酵罐 Jacketed & Insulated Fermenter/unitank

5BBL-60BBL发酵罐 Jacketed & Insulated Fermenter/unitank

The tank is passivated and fully equipped with parts and fittings below:

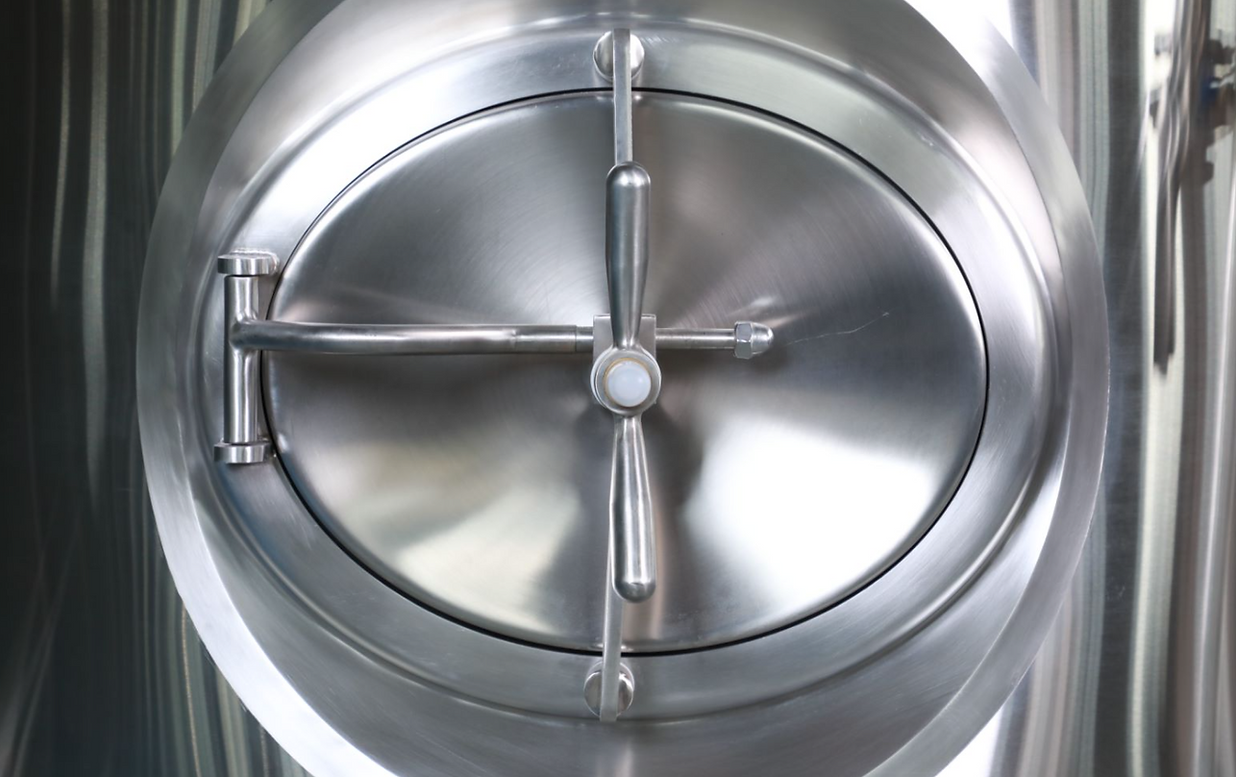

Side Shadowless manway x1

3mm 304 stainless steel inner shell

2mm 304 stainless steel outer shell

Fully passivated

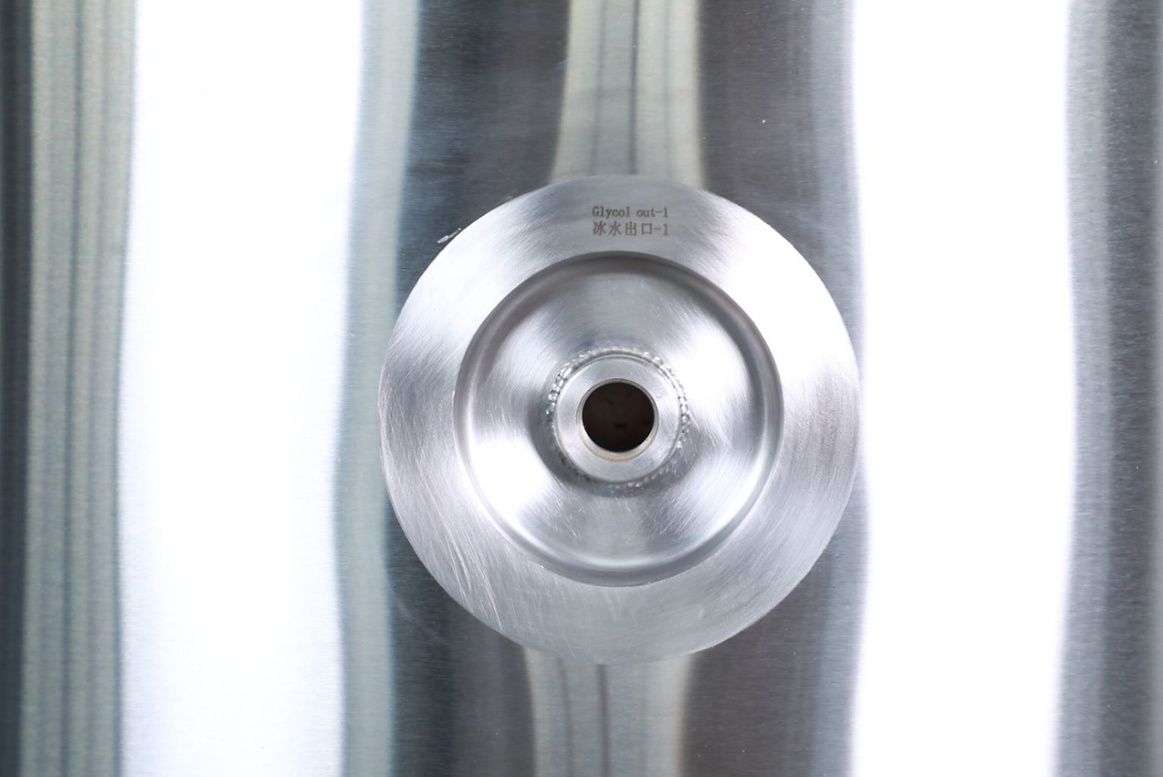

Glycol jacket on the side and cone

3" insulation on the side and cone

Tested pressure 30Psi

Suggested working pressure 15Psi

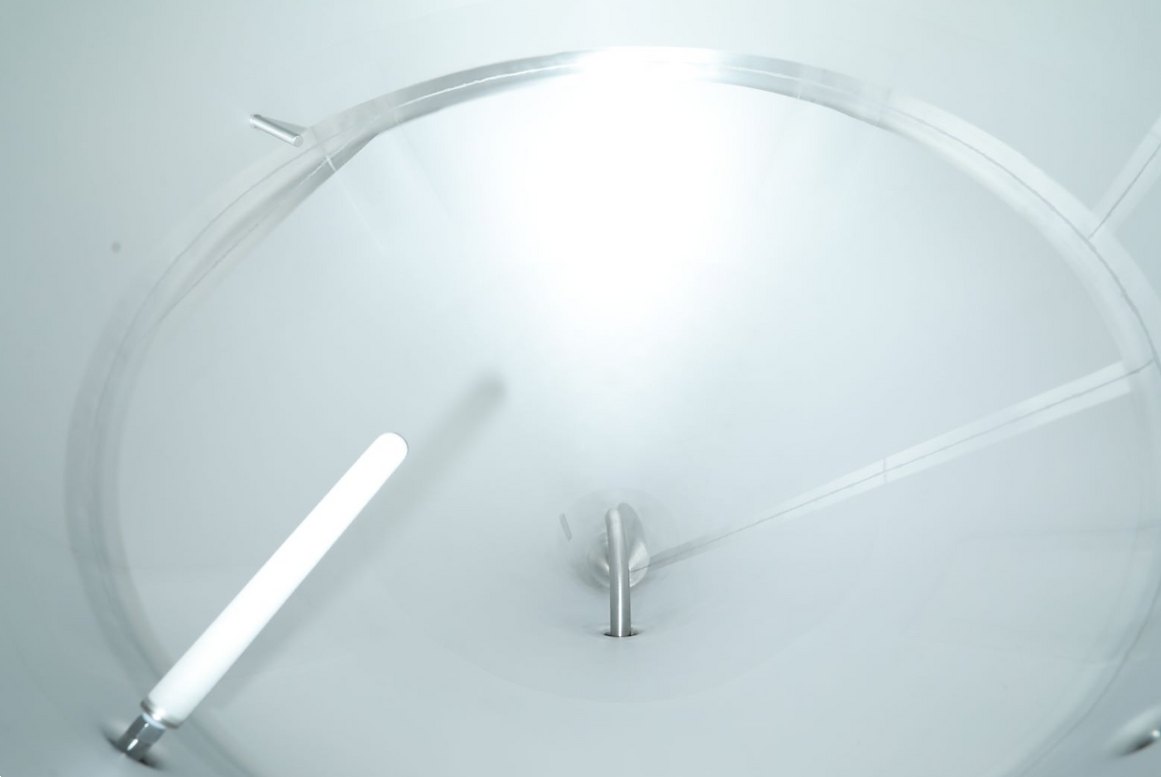

Spinning CIP ball x1

CIP arm x1

Blow off arm x1

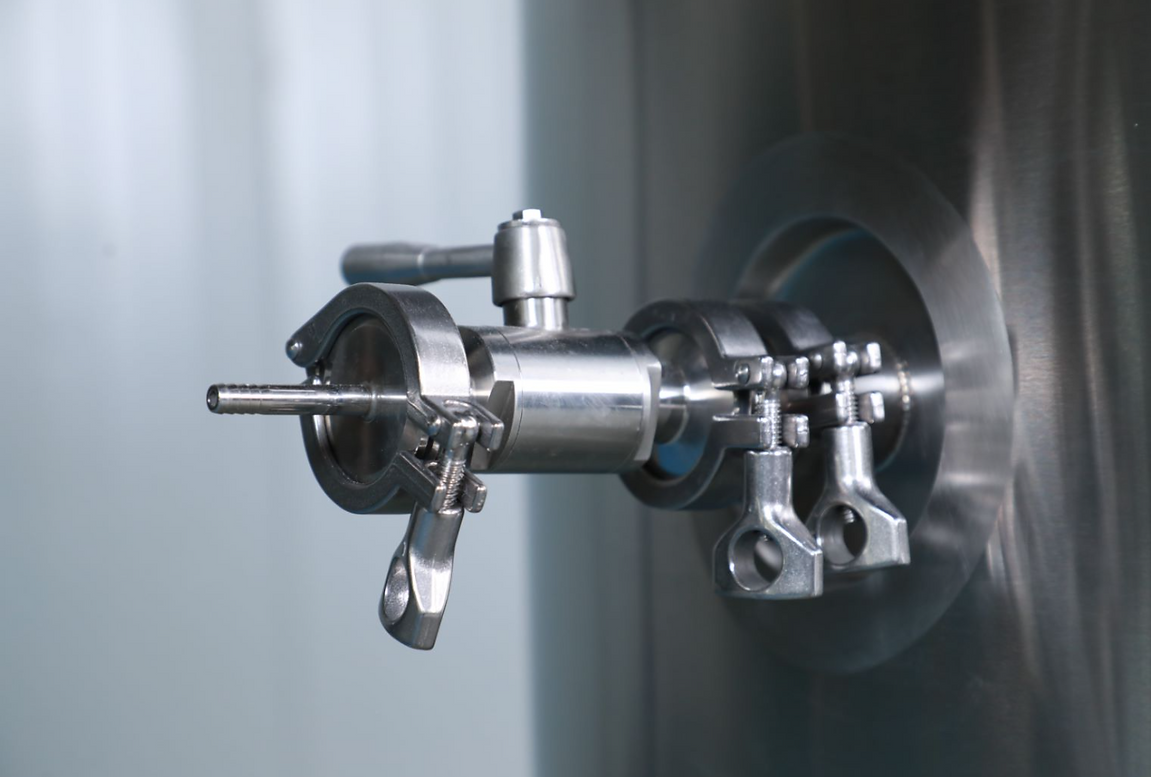

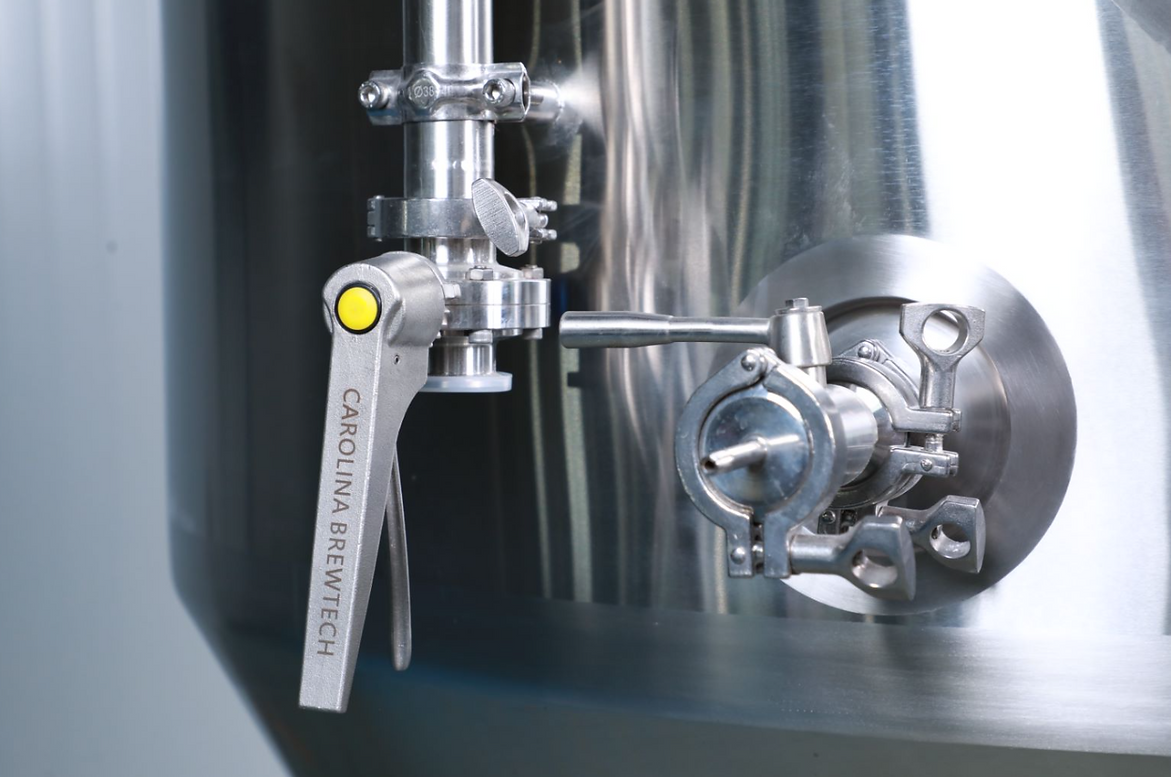

Sample valve x1

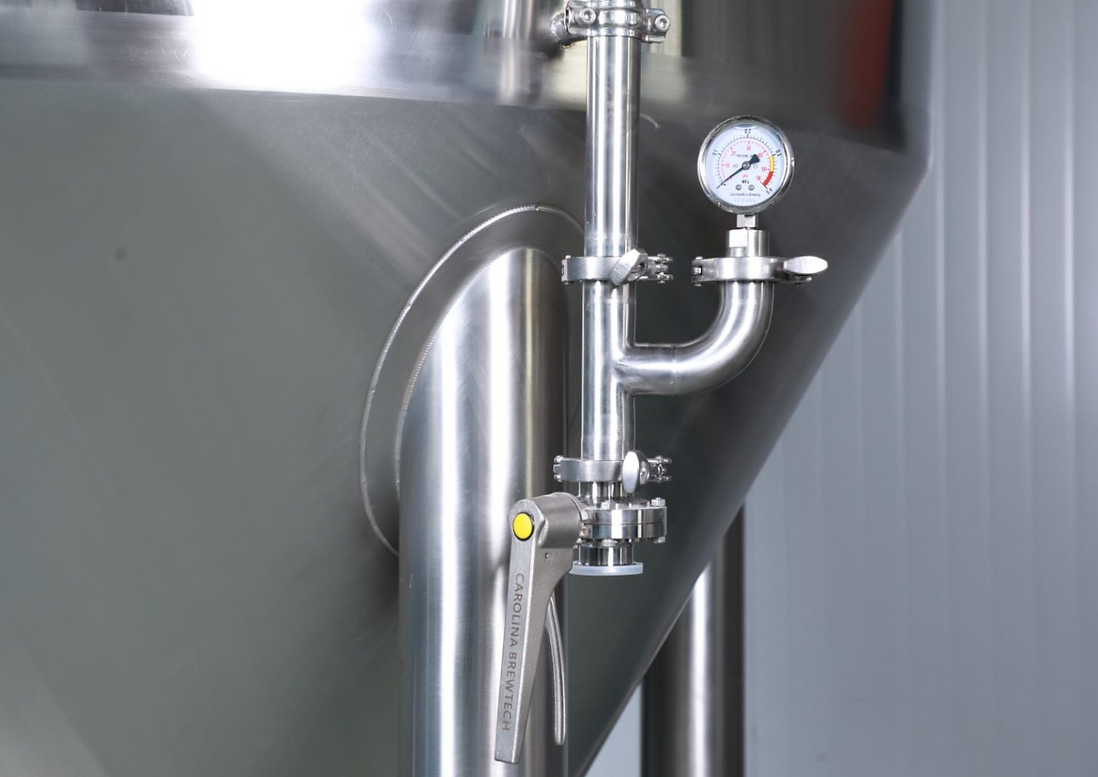

Pressure gauge x1

Carb stone assembly x1

Pressure release/vacuum valve x1

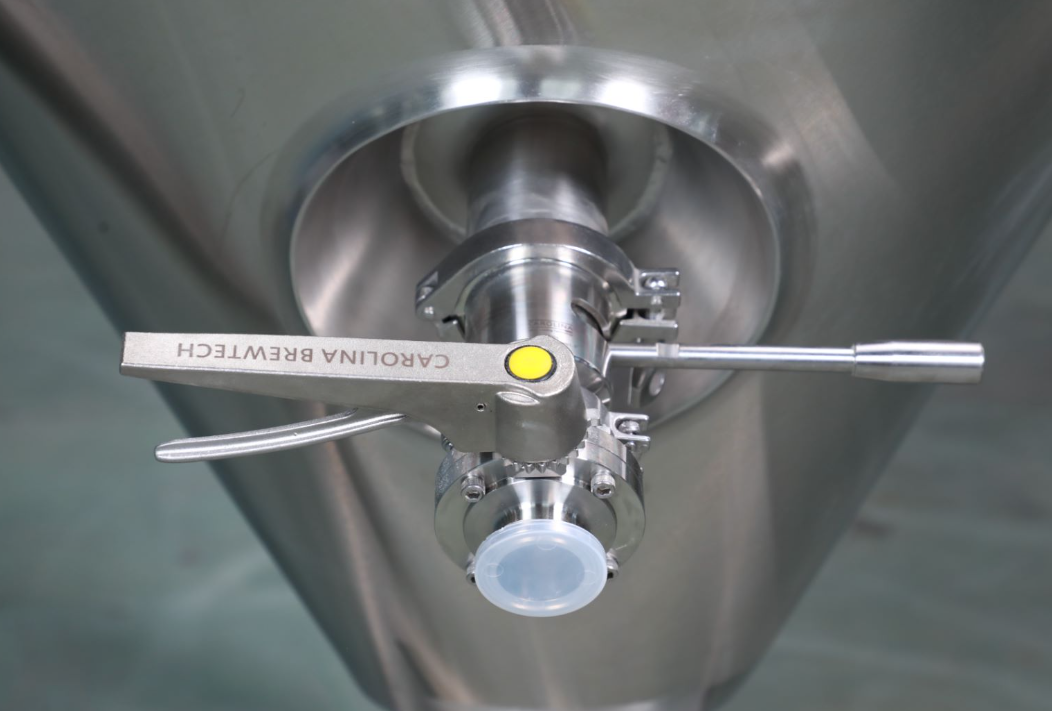

Butterfly valves all

1.5'' Clamps all

Gaskets all

25% headspace

60BBL发酵罐
