板式换热器
板式换热器
用途Applications
板式换热器是液体或气体传热的理想设备。适用于对各类饮料及工业液体加热、杀菌、冷却、蒸发、冷凝和热回收等多种工艺过程。在食品、轻工、医药、纺织、化工和空调采暖等领域获得了广泛应用。The plate heat exchanger is an ideal equipment for liquid or gas heat transfer. It is suitable for various processes such as heating, sterilization, cooling, evaporation, condensation, and heat recovery of various beverages and industrial liquids. It has been widely used in the fields of food, light industry, medicine, textile, chemical industry, air conditioning, and heating etc..
|

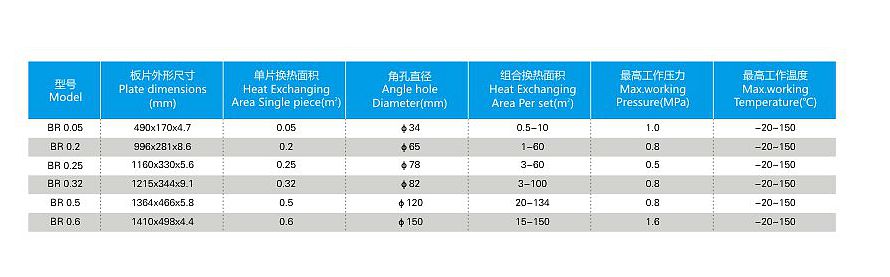

型号 Model |
板片外型尺寸 Plate Dimensions (mm) |
单片换热面积 Heat Exchanging Area Single Piece(m²) |
角孔直径 Angle Hole Diameter(mm) |
组合换热面积 Heat Exchanging Area Per Set(mm) |
最高工作压力 Max Working Pressure(Mpa) |
最高工作温度 Max Working Temp.(℃) |
|
BR0.05 |
490*170*4.7 |
0.05 |
Φ34 |
0.5-10 |
1.0 |
-20-150 |
|
BR0.2 |
996*281*8.6 |
0.2 |
Φ65 |
1-60 |
0.8 |
-20-150 |
|
BR0.25 |
1160*330*5.6 |
0.25 |
Φ78 |
3-60 |
0.5 |
-20-150 |
|
BR0.32 |
1215*344*9.1 |
0.32 |
Φ82 |
3-100 |
0.8 |
-20-150 |
|
BR0.5 |
1364*466*5.8 |
0.5 |
Φ120 |
20-134 |
0.8 |
-20-150 |
|
BR0.6 |
1410*498*4.4 |
0.6 |
Φ150 |
15-150 |
1.6 |
-20-150 |
麦汁冷却器
Wort cooler
|
型号 Model |
麦汁处理量 Malt extract capacity(t/h) |
耗冷量 Cooling consumption(kcal/h) |
麦汁进口接口 Malt extract inlet and outlet diameter |
冰水进出接口 Chilling Water inlet and outlet diameter |
换热面积 Heat Exchanging Area(m²) |
|
BR0.6 |
20 |
1750000 |
DN100 |
DN100 |
70 |
|
BR0.6 |
30 |
2600000 |
DN120 |
DN120 |
105 |
|
BR0.6 |
40 |
3500000 |
DN120 |
DN120 |
140 |
|
BR0.6 |
50 |
4350000 |
DN120 |
DN120 |
175 |
|
BR0.6 |
60 |
5200000 |
DN200 |
DN200 |
210 |
|
BR0.6 |
70 |
6100000 |
DN200 |
DN200 |
245 |
收奶冷却器
Milk collection cooler
|
型号 Model |
流量 Flow(L/H) |
换热面积 Heat Exchanging Area(m²) |
口径Diameter(mm) |
|
|
物料 Material |
介质 Medium |
|||
|
BR0.2 |
1000 |
2 |
25 |
25 |
|
BR0.2 |
2000 |
3 |
38 |
38 |
|
BR0.2 |
3000 |
5 |
38 |
38 |
|
BR0.32 |
4000 |
6 |
51 |
51 |
|
BR0.32 |
5000 |
7 |
51 |
51 |
|
BR0.32 |
6000 |
8 |
51 |
51 |
|
BR0.32 |
8000 |
11 |
63 |
63 |
|
BR0.32 |
10000 |
16 |
63 |
63 |
|
BR0.32 |
12000 |
18 |
63 |
63 |
|
BR0.32 |
15000 |
22 |
63 |
63 |
酸奶翻缸冷却器
Yogurt fermentation plate cooler
|
型号 Model |
流量 Flow(L/H) |
换热面积 Heat Exchanging Area(m²) |
口径Diameter(mm) |
|
|
物料 Material |
介质 Medium |
|||
|
BR0.32 |
3000 |
4 |
38 |
38 |
|
BR0.32 |
4000 |
6 |
51 |
51 |
|
BR0.2 |
5000 |
8 |
51 |
51 |
|
BR0.32 |
6000 |
10 |
51 |
51 |
|
BR0.32 |
7000 |
12 |
51 |
63 |
|
BR0.32 |
8000 |
15 |
51 |
63 |
|
BR0.32 |
10000 |
18 |
63 |
63 |
|
BR0.32 |
20000 |
36 |
63 |
63 |
冰激凌冷却器
ICE Cream cooler
|
型号 Model |
流量 Flow(L/H) |
换热面积 Heat Exchanging Area(m²) |
口径Diameter(mm) |
|
|
物料 Material |
介质 Medium |
|||
|
BR0.2 |
3000 |
10 |
38 |
38 |
|
BR0.2 |
4000 |
15 |
51 |
51 |
|
BR0.2 |
5000 |
18 |
51 |
51 |
|
BR0.2 |
6000 |
20 |
51 |
63 |
|
BR0.32 |
7000 |
23 |
51 |
63 |
|
BR0.32 |
8000 |
26 |
51 |
63 |
|
BR0.32 |
10000 |
32 |
63 |
76 |
|
BR0.32 |
20000 |
60 |
63 |
76 |
